Anti Collision Device for Cranes:
The Anti-collision system is Safety Device to avoid the collision of Two electric Over-head Travelling Cranes working on the same Rails & Gantry.
Working Principle of Anti Collision Device :
The System works on the principle of Retro-Reflective Infrared waves. It consists of an Emitter and Sensor module and a Special reflector. The Emitter emits the infrared waves back to the sensor. The Sensor senses the presence of these reflected infrared waves and activates an alarm signal and stops / reduces the speed of the crane.
When two cranes are away from each other, then the reflected waves will not reach the sensor and the cranes operates normally.
The sensing Distance is adjustable between 3 - 10 meters. The Anti-collision device is specially designed for the crane application and is suitable for the continuous duty.
Each set consists of an Emitter / Sensor module and a Reflector. for one PAIR of Cranes Two Sets of Anti-collision Systems are required.
Set Consists of :
(1). Control Unit - 1 No.

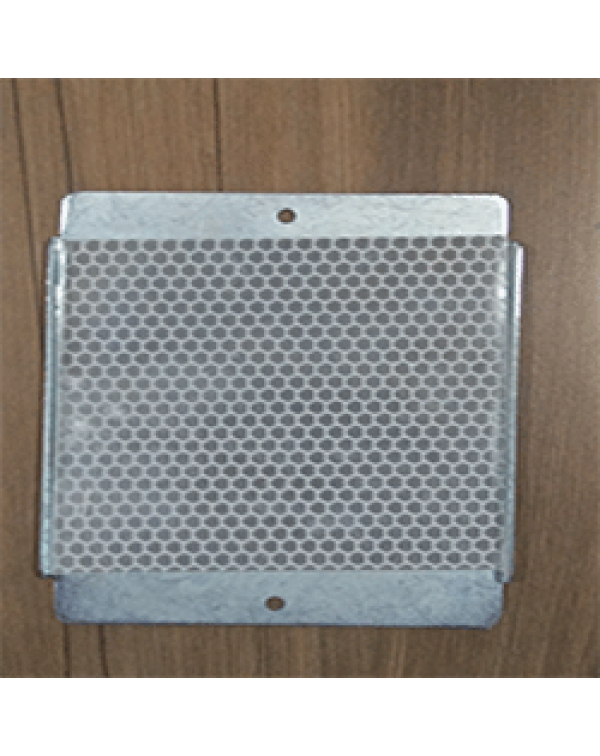

(2). Prismatic Reflector - 1 No.
| Anti Collision Device | |
| Model | ACD - 201 |
| Supply Voltage | 110 / 220 V AC |
| Out-put Contact Rating | 5 A / 10 A at 110 V AC |
| Operating Temperature | Up to 70 Degree C |
| Sensitivity Adjustment | 15 % to 100 % |
| Maximum Sensing Distance | 10 Meters |
