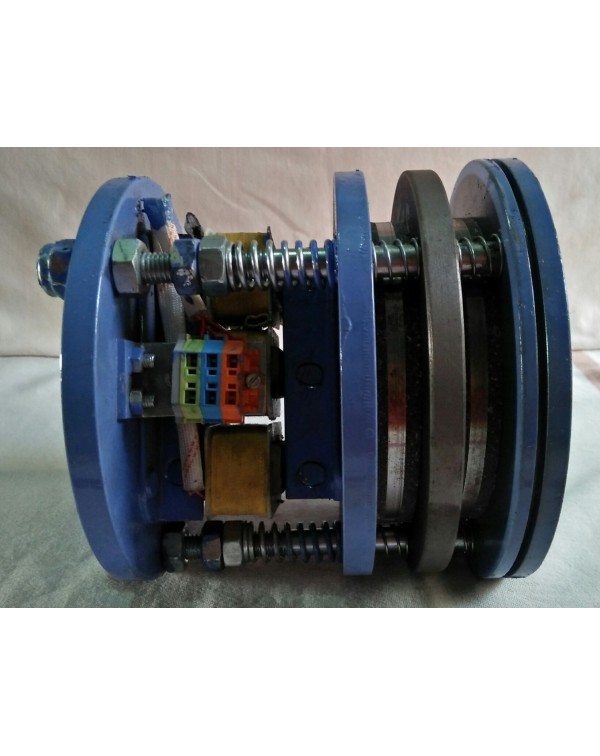

| ACEM Disc Brake | |
| Model | DMT - 150 X |
| Type | Double Liner |
| Material of Construction | C I Plates |
| Breaking Torque | 2.2 Kg-M |
| No. of Coils | Three |
| Brake Coil Size | N.A, |
| Nos. of Phase | Three Phase |
| Supply Criteria | 3 Phase, 415 Volts, 50 Hz, A C Supply |

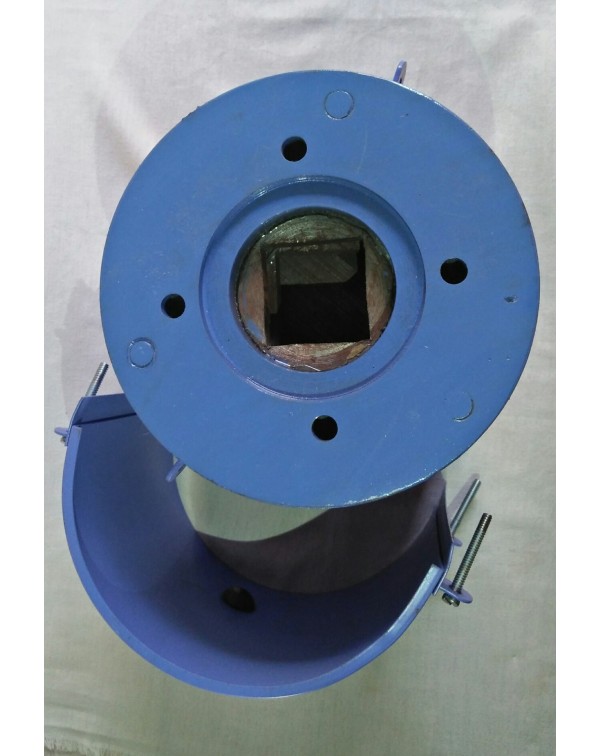

| Mounting - Step Diameter | 80 mm |
| Pitch Circle Diameter | 100 |
| Brake Out-side Diameter | 153 mm |

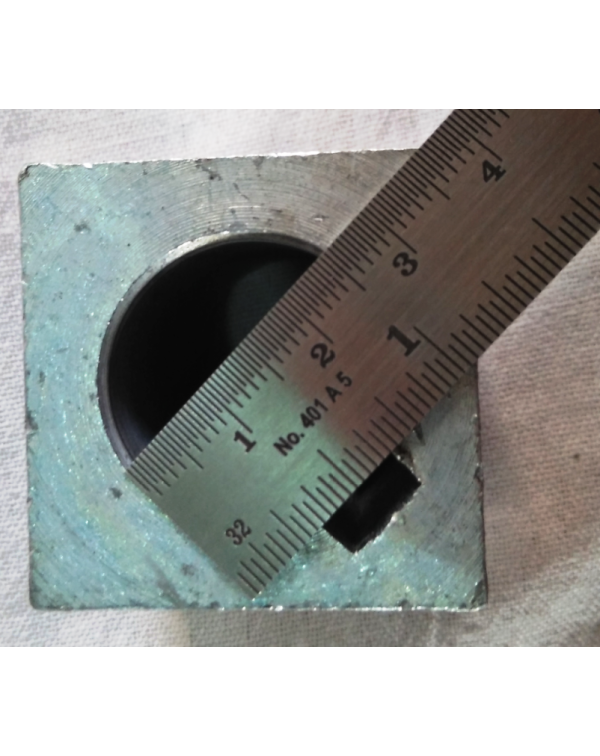

| Shaft Diameter, Length & Keyway | 24 mm Diameter , 45 mm Long, Key Way Size - |

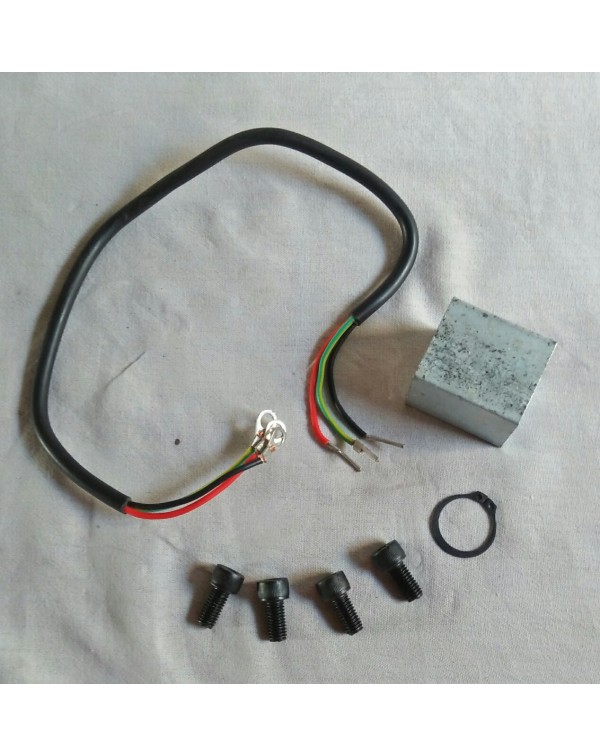

| Fixing Bolt Size & Nos. | Allen Bolt of M-8 x 15 mm Size |

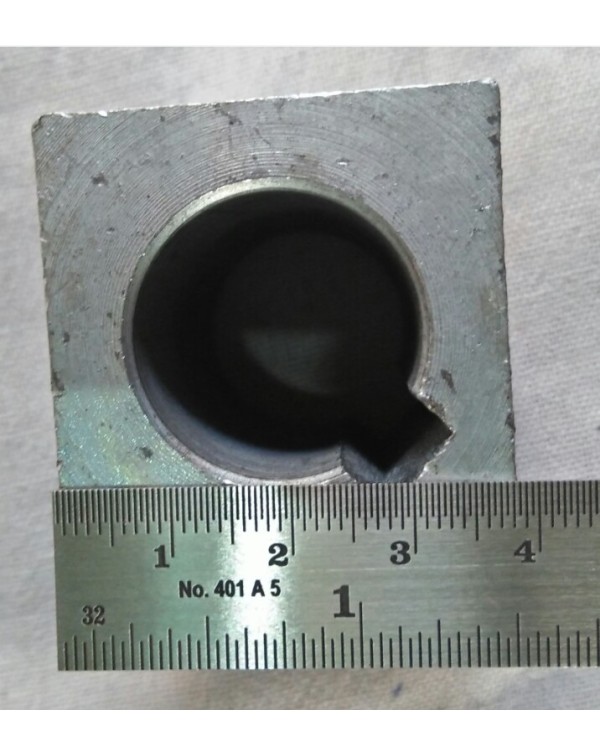

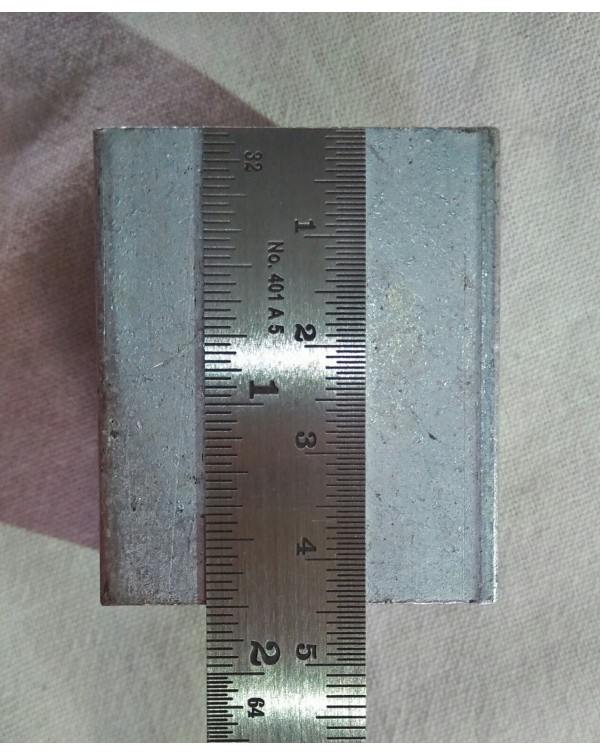

| Square Hub Size | 38 mm x 38 mm Square Hub |
| Liner Diameter | 115 mm |
| Liner Thickness | 15 / 16 mm |
| Liner Material | Composite Material Riveted & Fixed On M S Plate |
| SR. NO. | Sr. No. Shall be assigned by the Mfr. at the time of dispatch as per their Records. |
