10 Ton Single Girder EOT Crane / 10 Ton Crane / Mono Girder EOT Crane / 10 Ton Over-Head Crane from Dhruv Corporation, Nashik
Dhruv Corporation has more than 10 years of Experience in making Over Head Cranes for Customer Requirements.
10 Ton Single Girder Electric Over-Head Travelling Crane offered by Dhruv Corporation is robust in construction, made with adequate care to sustain Design Load.
C T Festoon & Control Cable Festoon Arrangement is facilitated on MS Rolled Steel I - Section with Bearing Fitted Metal Cable Trolley.
| Electric Over-Head Crane | |
| Crane Stores Type | 10 Ton Capacity Sing Girder EOT Crane from Nashik |
| Supplier / Manufacturer | Dhruv Corporation, Nashik |
| Crane Capacity | 10 Ton ( 10000 Kgs. ) |
| Span | 8.850 Meters |
| Application | Indoor Application |

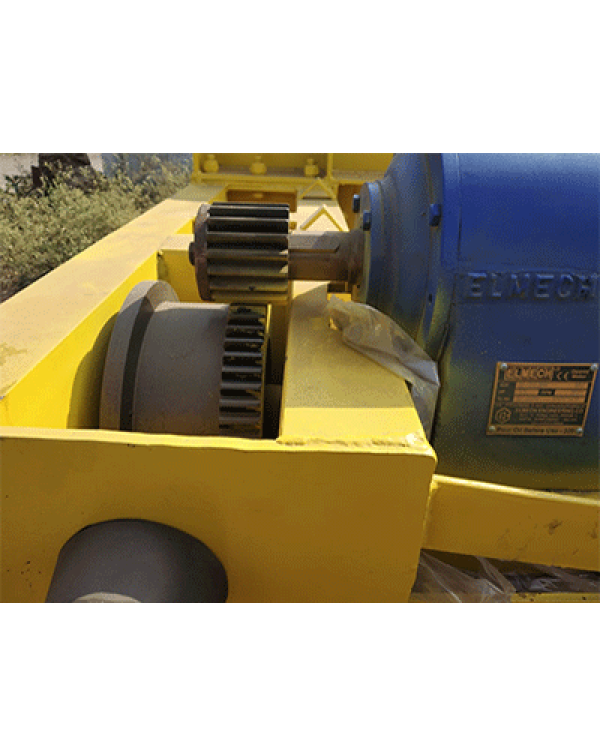

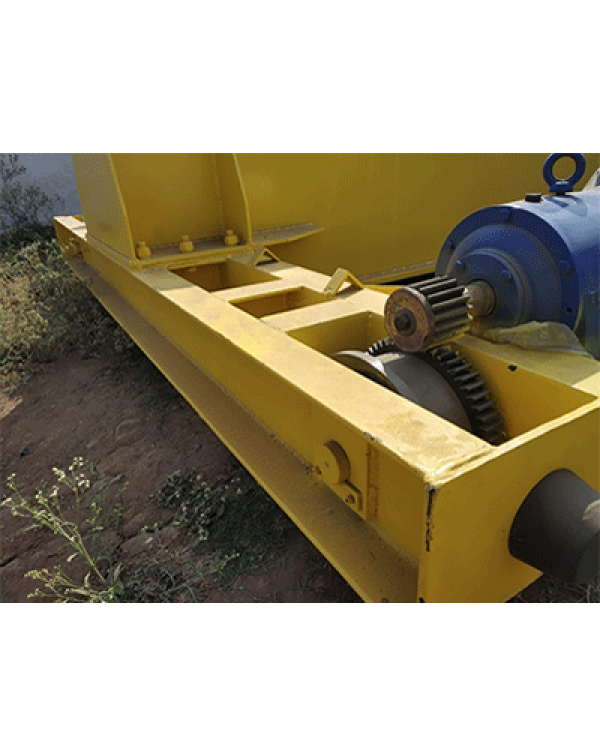

| Type of End Carriage | Open Reduction |
| Wheel Base | Not Available |

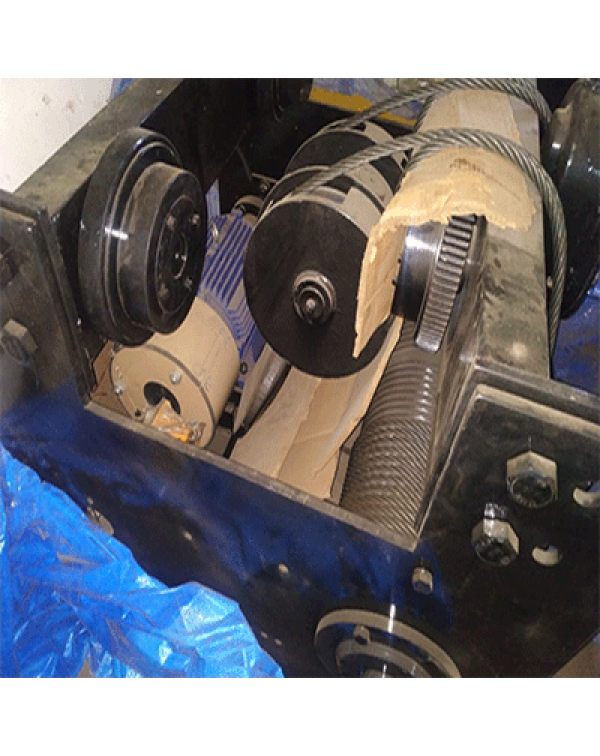

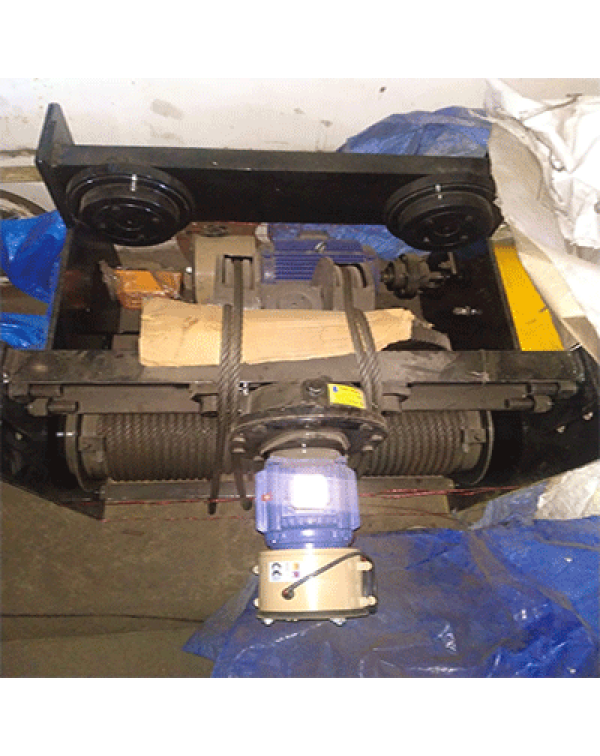

| Hoist Brand / Make of Hoist | Mechtech Industries, Ahmedabad, Gujarat |
| Height of Lift | 6 Meters |
| Class of Duty | M - 5 ( Class 2 Medium Duty ) |
| Hoisting Speed | 3.0 M P M ( +/- 10 % ) |
| Cross Travel Speed | 12 - 15 M P M ( +/- 10 % ) |
| Long Travel Speed | 12 - 15 M P M ( +/- 10 % ) |
| Hoisting Motor | 10 H P x 1440 RPM...... Stallion Make Crane Duty Motor |
| Cross Travel Motor | 1.0 H P |

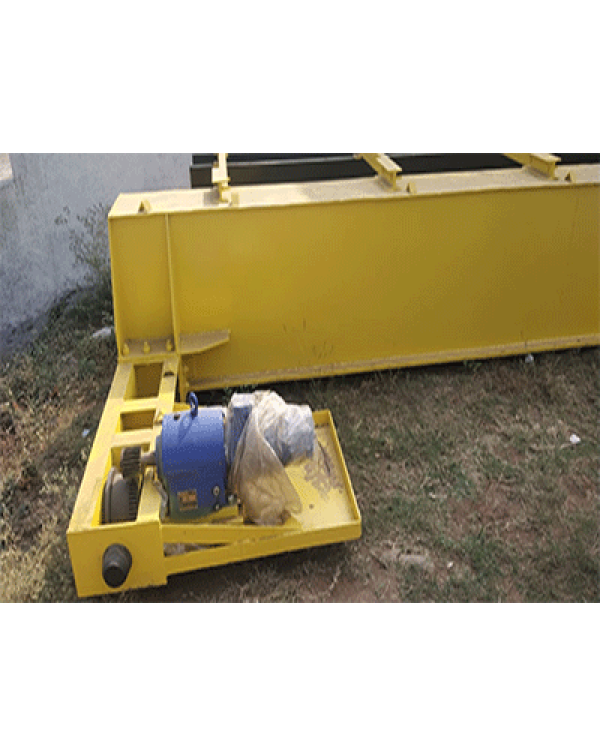

| Long Travel Motor | 1.5 Hp Elemech Make Gear Motor -- Two Nos. |
| Wire Rope Details | 16 MM Diameter 6 x 36 Construction Fiber Main Core Wire Rope of Bedmutha Make |
| Nos. of Falls | 4 - Four |
| Power Supply Condition | 3 phase, 415 Volts, 50 Hz A C Supply |
| Control Voltage | 110 Volts |
| Over-all Weight | Not Available |
| VFD Drive Detail | Provided in Long Travel Motion Only |
